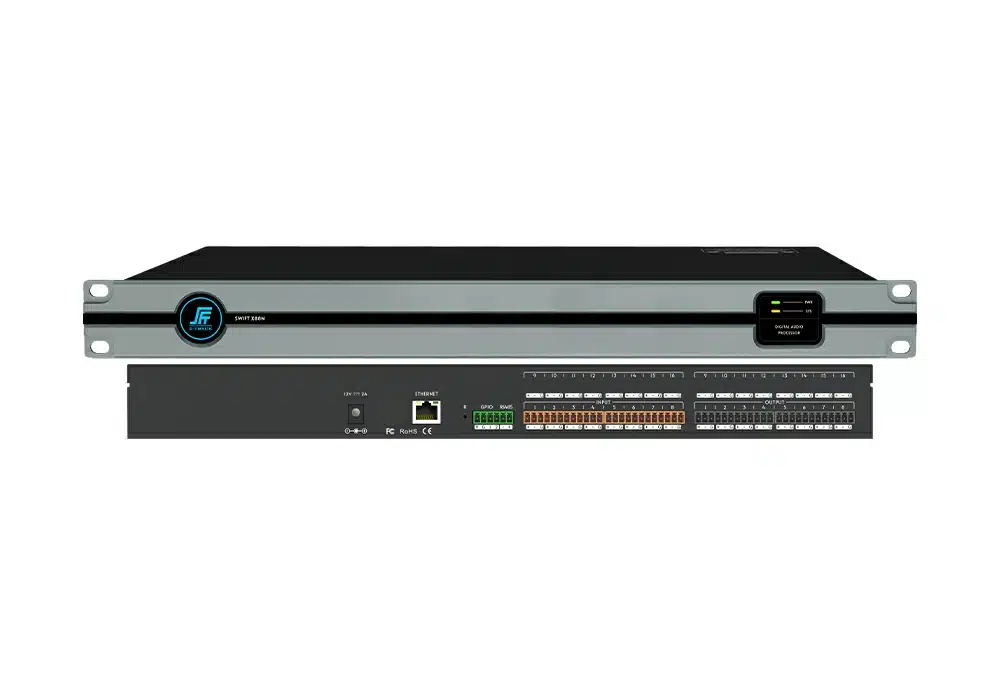

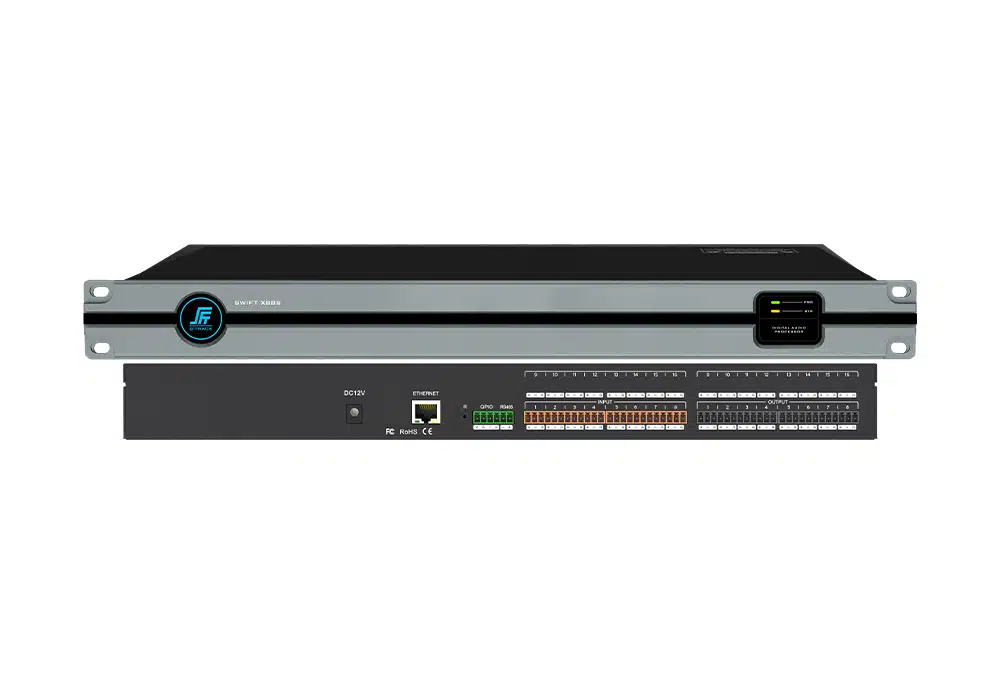

Product Features

• Highly integrated, integrating a variety of traditional Analog audio processing equipment in a Digital Signal Processor;
• High-performance 32-bit floating-point DSP processor, all-digital processing, fast response to AGC (Automatic Gain Control), AM (Automatic Mixer), AFC (Acoustic Feedback Canceler), AEC (Acoustic Echo Canceler), ANS (Adaptive Noise Suppressor)and other audio processing;
• 24-bithigh-performance A/D, D/A converter, 48kHz sampling rate, high-quality Analog → Digital, Digital → Analog conversion;
• 16Analog input channels and 16 Analog output channels, very small distortion and ultra-low noise floor;
• Humanization, graphical, intuitive and easy-to-operate control software interface;
• Comprehensive matrix mixing functions;
• Scene storage is different from the Analog equipment is one of the most practical and significant features, can store 100 complete scenes, all the scenes can be exported to an external storage device for storage backup, so that the later call at any time.

Functions

• Comprehensive matrix mixing function, 48kHz sampling rate, 24-bit high performance A/D, D/A converter and 32-bit floating point DSP processor;
• DSP audio processing, built-in automatic mixing console, including mixing and automatic mixing functions, but also has a mixing component control function; at the same time with AFC, AEC, ANS module;
• Inputs per channel: Preamplifier, Invert, Signal Generator, Expander, 5-band Parametric Equalizer, Compressor, Automatic Gain Control (AGC), AM (Gain Sharing Automatic Mixer or Gating Automatic Mixer), Acoustic Feedback Canceler (AFC), Acoustic Echo Canceler (AEC), Adaptive Noise Suppressor (ANS), Parametric Equalizer filter type selectable (Low Shelf, High Shelf, Low Pass Filter, High Pass Filter);
• Outputs per channel: Delay, Crossover, 31-band Graphic Equalizer, Limiter, Invert,;
• Test signal generator, Sine wave, Pink Noise, White Noise, frequency and level magnitude selectable;
• Input phase button, mute button, phantom power button;
• Output mute button, phase button per channel;
• One-click display of all function modules;
• Storing user manual and software with the device;
• Central control code generated in the control software; power failure automatic protection memory function; one-click reset function;
• Channel copy, paste, group control function;
• Supports setting the maximum and minimum volume range for each channel;
• The same host allows 10 users to manage;
• Device name can be modified;
• Editable preset mode, new, delete, modify, one-click reset, preset mode can be stored to computer and one-click reset;
• With camera tracking function, can independently adjust the preset position of a camera, compatible with VISCA, PELCO-D, PELCO-P three control protocols, support for custom commands;
• Ethernet multi-purpose data transmission and control port, can support real-time management of single and multiple devices;
• Intuitive image, simple and easy to understand the graphical software control interface, for customers to bring fast, real-time operating experience;
• The device does not need a CD, comes with installation software, a device for a software version, to solve the troubles caused by the loss of the installation CD and the confusion of multiple software versions;
• Configuration of bi-directional RS485 interface, standard Ethernet control interface, 2-channel programmable GPIO control interface (customisable inputs and outputs);
• Support 100 groups of scene presets, scene new, save, delete and other functions;
• Intuitive, graphical software control interface, works on Windows XP, 7, 8, 10, 11, etc.;
• Support mobile iOS, iPadOS, Android control software.
