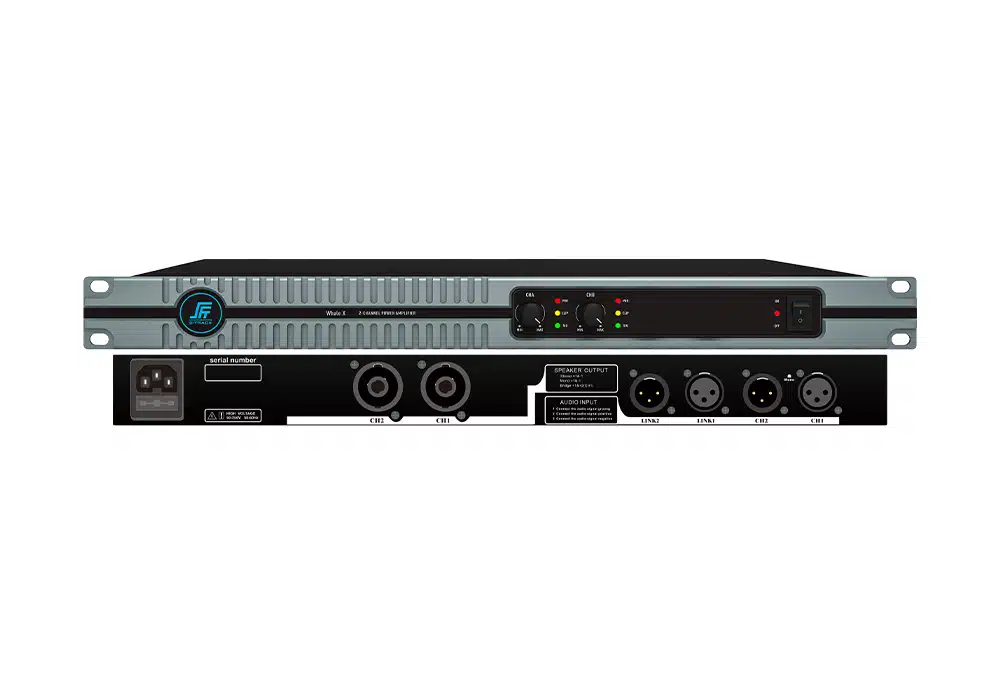

This is digital amplifier that supports power supply over-current protection, amplifier DC output protection, temperature protection, and overload protection. It can also be cascaded with multiple devices.
| Stereo 8Ω Output Power | 2×150W |
| Stereo 4Ω Output Power | 2×250W |
| Bridge 8Ω Output Power | 1×500W |
| Input Sensitivity | 0.77V (1kHz) |
| Input Impedance | 10kΩ, balanced |
| Signal to Noise Ratio | 103dB |
| Frequency Response | 20Hz～20kHz ±1dB |
| Circuit Protection | Power supply over-current protection, amplifier DC output protection, temperature protection, overload protection |
| Operating Voltage | AC 220V 50Hz |
| Operating Temperature and Humidity | 0℃～50℃, 10%～90%RH, No condensation |
| Chassis | 1U |
| Product Dimensions | 482.4mm×320mm×44mm |
| Net Weight | 4.1Kg |
| Package Dimensions (L×W×H) | 545mm×440mm×115mm |
| Package Weight | 5.4kg |
| Stereo 8Ω Output Power | 2×350W |
| Stereo 4Ω Output Power | 2×450W |
| Bridge 8Ω Output Power | 1×700W |
| Input Sensitivity | 0.77V (1kHz) |
| Input Impedance | 10kΩ, balanced |
| Signal to Noise Ratio | 103dB |
| Frequency Response | 20Hz～20kHz ±1dB |
| Circuit Protection | Power supply over-current protection, amplifier DC output protection, temperature protection, overload protection |
| Operating Voltage | AC 220V 50Hz |
| Operating Temperature and Humidity | 0℃～50℃, 10%～90%RH, No condensation |
| Chassis | 1U |
| Product Dimensions | 482.4mm×320mm×44mm |
| Net Weight | 4.1Kg |
| Package Dimensions (L×W×H) | 545mm×440mm×115mm |
| Package Weight | 5.4kg |
| Stereo 8Ω Output Power | 4×150W |
| Stereo 4Ω Output Power | 4×250W |
| Bridge 8Ω Output Power | 2×500W |
| Input Sensitivity | 0.77V (1kHz) |
| Input Impedance | 10kΩ, balanced |
| Signal to Noise Ratio | 103dB |
| Frequency Response | 20Hz～20kHz ±1dB |
| Circuit Protection | Power supply over-current protection, amplifier DC output protection, temperature protection, overload protection |
| Operating Voltage | AC 220V 50Hz |
| Operating Temperature and Humidity | 0℃～50℃, 10%～90%RH, No condensation |
| Chassis | 1U |
| Product Dimensions | 482.4mm×320mm×44mm |
| Net Weight | 4.9Kg |
| Package Dimensions (L×W×H) | 545mm×440mm×115mm |
| Package Weight | 6.2kg |
| Stereo 8Ω Output Power | 4×350W |
| Stereo 4Ω Output Power | 4×450W |
| Bridge 8Ω Output Power | 2×700W |
| Input Sensitivity | 0.77V (1kHz) |
| Input Impedance | 10kΩ, balanced |
| Signal to Noise Ratio | 103dB |
| Frequency Response | 20Hz～20kHz ±1dB |
| Circuit Protection | Power supply over-current protection, amplifier DC output protection, temperature protection, overload protection |
| Operating Voltage | AC 220V 50Hz |
| Operating Temperature and Humidity | 0℃～50℃, 10%～90%RH, No condensation |
| Chassis | 1U |
| Product Dimensions | 482.4mm×320mm×44mm |
| Net Weight | 4.9Kg |
| Package Dimensions (L×W×H) | 545mm×440mm×115mm |
| Package Weight | 6.2kg |
