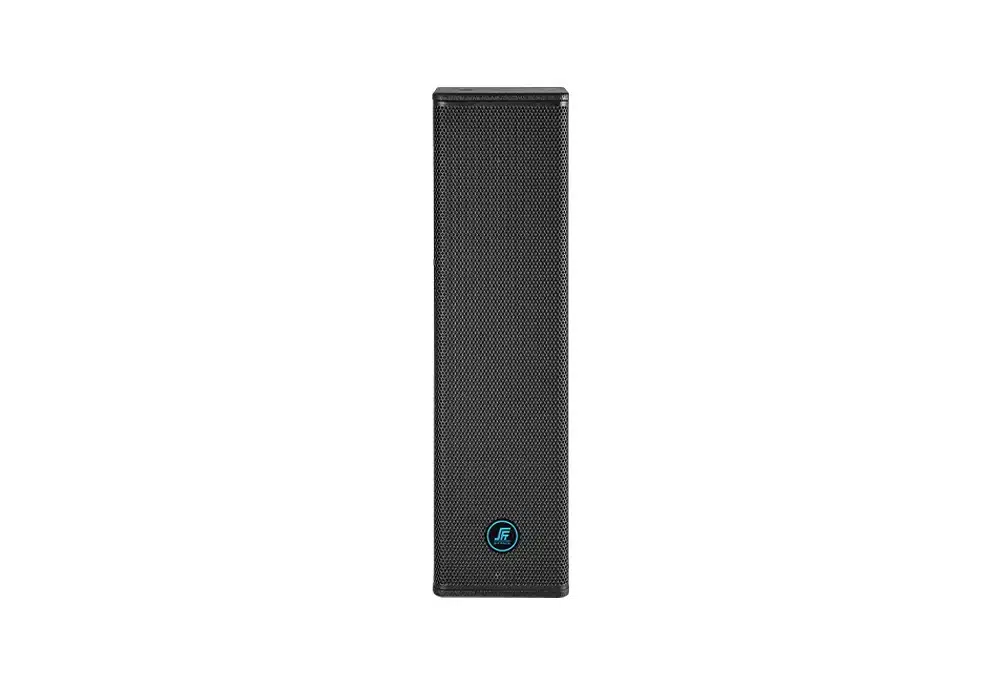

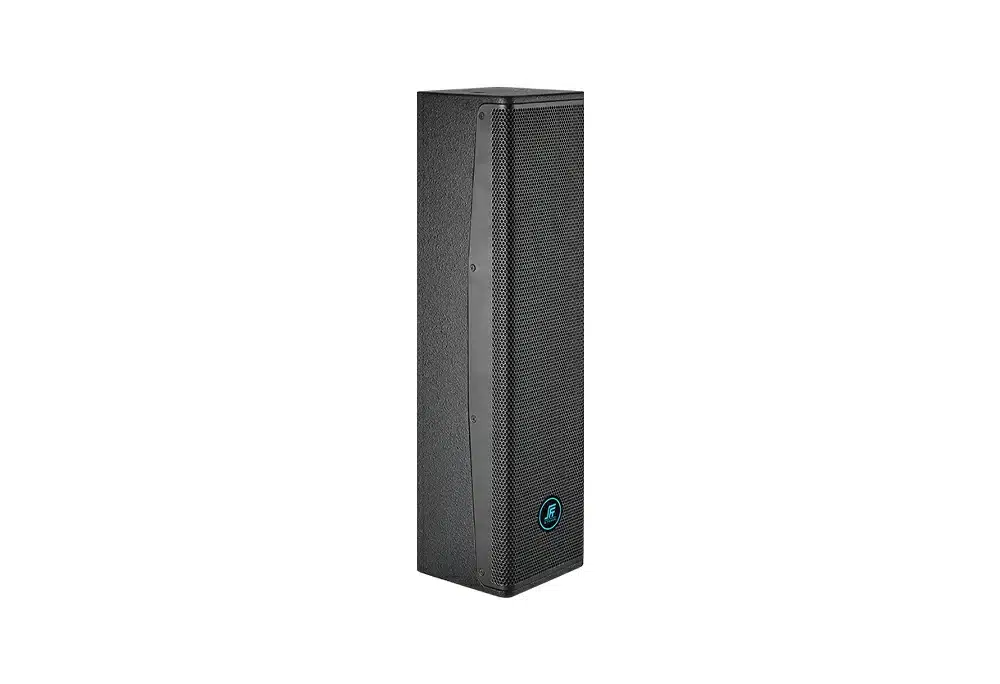

EAGLE Z52 Three-way Column Loudspeaker

Frequency Response	80Hz – 20KHz
Drivers	LF:1X5.25″Bass MF:2X3.25″Midrange HF:1X3.25″Treble
Rated Power	80W
Characteristic Sensitivity Level	85dB±3dB
Maximum Sound Pressure Level	105dB
Nominal Impedance	8Ω
Directivity	H/V 90°×90°(±10°)
Enclosure Plate	High Density MDF Board
Enclosure painting process	Black color, water-based paint spraying
Protective netting process	Acoustically transparent special mesh with inner round hole steel mesh
Connection Socket	1 x Neutrik NL4+ 2-position terminal block output socket
Hanging method	Rear hanging
Product Dimensions(H×W×D)	555mm×140mm×152mm
Net Weight	5.5kg
Package Dimensions(L×W×H)	610mm×247mm×220mm
Gross Weight	6.5kg

Name	Size	Time	Download
EAGLE Z52 Three-way Column Loudspeaker User Manual and Datasheet		2025-07-21
