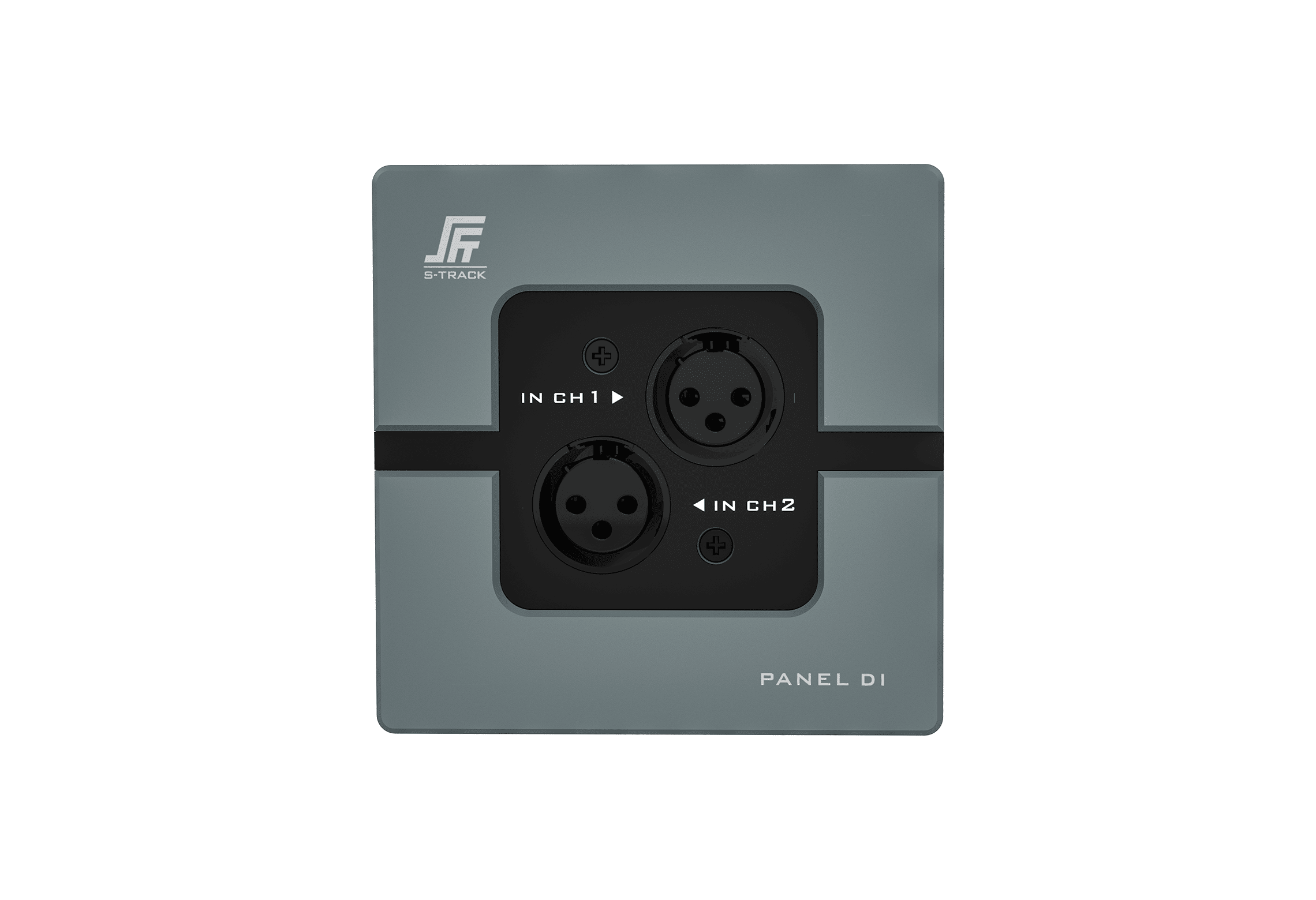

PANEL DI Dante Interface

The product is based on the Dante international common protocol audio interface device, can realize the analog audio signal input, converted to digital audio signal, through the Dante protocol routing to any Dante audio transmission network equipment, to achieve high-quality, long-distance, low latency, strong anti-jamming ability, easy to network and other characteristics. The device adopts high quality AD/DA signal conversion chip. Bring your analog devices and more products into the network audio world.

Share it:

  • PANEL DI Dante Interface

PRODUCT DESCRIPTION

Functions

  • 1.Easy to use;
  • 2.Power supply and audio transmission in one, using PoE network switch power supply, power supply and audio transmission through the network cable;
  • 3.Simple audio routing, configure audio routing through Dante Controller.

PRODUCT PARAMETERS

Analog Interface 2 Neutrik XLR Female
Maximum signal level +18dBu
Dante Network Audio Interface RJ45
Frequency Response 100Hz ~ 20KHz, ±0.5dB
Sampling Rate 48KHz
Quantization Bits 24bit
Power Consumption 2W
Dynamic range >100dB
Signal-to-noise ratio >100dB
THD+N <0.003%@4dBu,1KHz
Background Noise -89dBu
Dante latency 1, 2 or 5ms (Configurable with Dante Controller)
Operating Temperature -10℃-40℃
Operating Humidity 5-95%
Device Dimensions 90×90×54mm

APPLICATION SCENARIO

RELATED DOWNLOAD

Name SizeTimeDownload
PANEL DI Dante Interface Datasheet 2025-01-18
