PANEL DO Dante Interface——S-Track S TRACK SCIENCE TECHNOLOGY CO., LTD

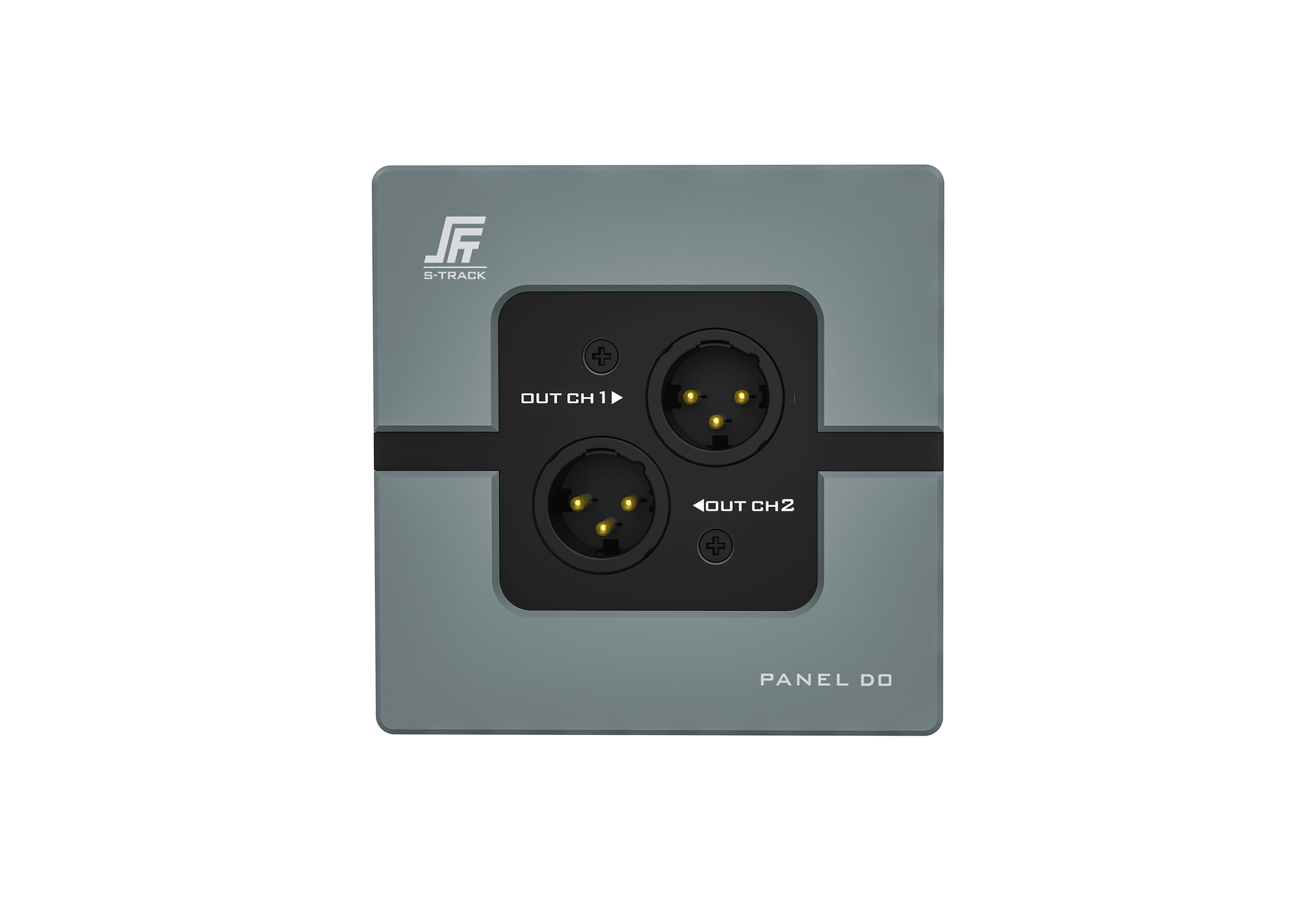

PANEL DO Dante Interface

The Dante Interface is based on the Dante international common protocol audio interface equipment, support for any Dante network digital audio access, converted to analog audio signal output, access to traditional analog audio equipment such as mixing consoles, amplifiers, processors and so on. Realize the characteristics of high quality, long distance, low latency, strong anti-interference ability and convenient networking. The device uses high-quality AD/DA signal conversion chip.

Share it:

  • PANEL DO Dante Interface

PRODUCT DESCRIPTION

Functions

  • 1.Easy to use;
  • 2.Power supply and audio transmission in one, using PoE network switch power supply, power supply and audio transmission through the network cable;
  • 3.Simple audio routing, configure audio routing through Dante Controller.

PRODUCT PARAMETERS

Analog Interface 2 Neutrik XLR Male
Maximum signal level +18dBu
Dante Network Audio Interface RJ45
Frequency Response 100Hz ~ 20KHz, ±0.5dB
Sampling Rate 48KHz
Quantization Bits 24bit
Power Consumption 2W
Dynamic range >100dB
Signal-to-noise ratio >100dB
THD+N <0.003%@4dBu,1KHz
Impedance 110KΩ (Balanced)
Background Noise -89dBu
Dante latency 1, 2 or 5ms (Configurable with Dante Controller)
Operating Temperature -10℃-40℃
Operating Humidity 5-95%
Device Dimensions 90×90×54mm

APPLICATION SCENARIO

RELATED DOWNLOAD

Name SizeTimeDownload
PANEL DO Dante Interface Datasheet 2025-01-18
